Bluesky Dual Gun DC Fast Charger 60kW-160kW GB/T
Bluesky Dual Gun DC Fast Charger 60kW-160kW — GB/T dual gun, 7″ touchscreen, dynamic load balancing, OCPP. Commercial ultra-fast EV charging station.
Price
2 years full warranty
Worldwide shipping
Secure payment

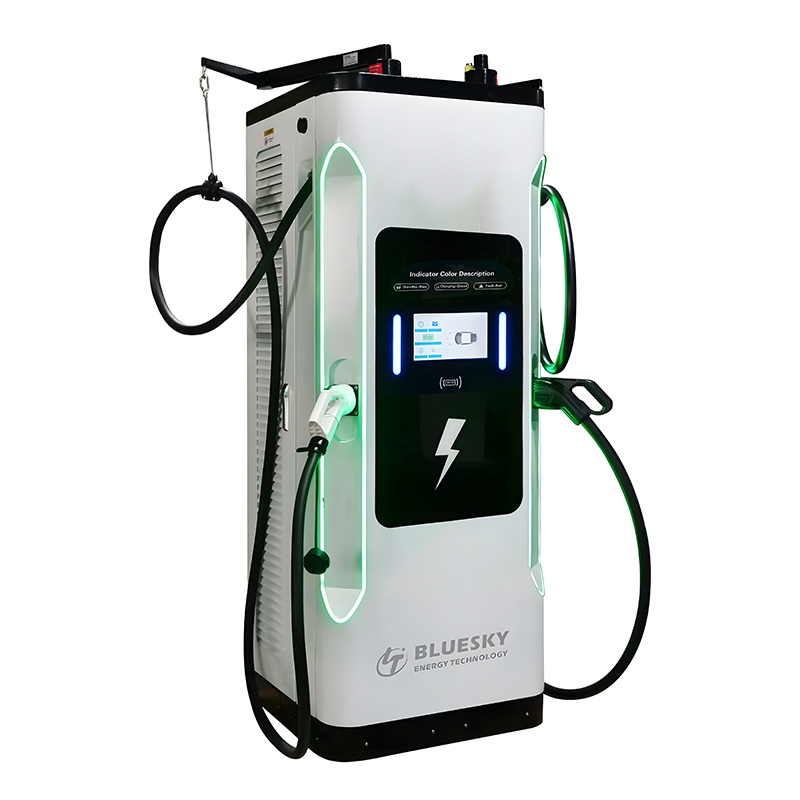

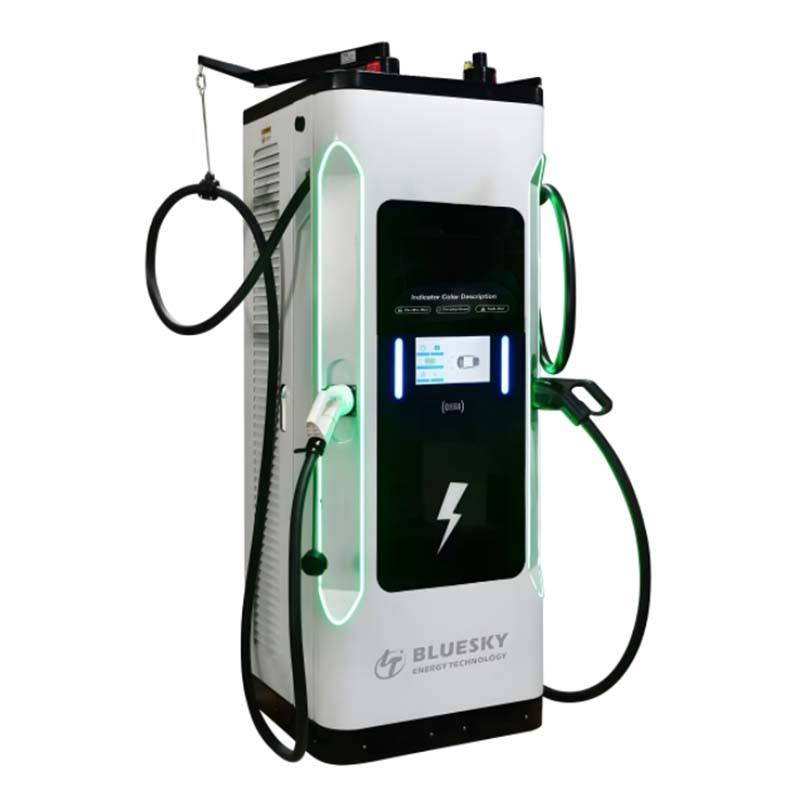

Bluesky CDZ-YE Dual Gun DC Fast Charging Station — 60kW-160kW GB/T
The Bluesky CDZ-YE is a high-power DC fast charging station with dual GB/T guns, delivering 60kW to 160kW of rapid DC charging. Dynamic load balancing intelligently distributes power between two vehicles. Ideal for commercial charging stations, highway service areas, and fleet depots requiring ultra-fast EV charging.
Key Features
- ⚡ 60kW-160kW DC Ultra-Fast — Charge EVs from 20% to 80% in just 20-40 minutes
- 🔌 Dual GB/T DC Guns — Simultaneously charge two EVs with intelligent power distribution
- ⚖️ Dynamic Load Balancing — Automatically optimizes power output between both charging ports
- 🖥️ Large Touchscreen Display — User-friendly 7-inch color touchscreen with multi-language support
- 📱 APP + Cloud Platform — Remote monitoring, station management, and OCPP protocol support
- 💰 Payment System Ready — QR code, RFID card, and mobile payment integration
- 🛡️ Industrial-Grade Safety — Multi-layer protection: overcurrent, overvoltage, insulation monitoring, surge, and emergency stop
- 🌡️ Liquid Cooling Ready — Advanced thermal management for continuous high-power operation
- 🏢 Floor-Standing Cabinet — Robust IP54 outdoor-rated enclosure for 24/7 public operation
- 🔋 Wide Voltage Range — 200V-750V DC output compatible with all GB/T EVs and most global EVs with adapter
Specifications
- Brand: Bluesky
- Model: CDZ-YE
- Power: 60kW / 120kW / 160kW Configurations
- Output: DC 200V-750V
- Connector: 2x GB/T DC (CCS2/CHAdeMO optional)
- Input: AC 380V 3-Phase
- Efficiency: ≥95%
- Display: 7″ Color Touchscreen
- Communication: 4G/WiFi/Ethernet + OCPP 1.6J
- Protection: IP54 / IK10
- Operating Temp: -30°C ~ 55°C
- Certifications: CE, GB/T, IEC 61851
- Dimensions: 700 x 500 x 1650mm (floor-standing)
Ideal For
Commercial EV charging stations, highway rest areas, fleet depots, taxi and ride-share charging hubs, shopping center parking, gas station EV conversions, and municipal charging infrastructure. Deliver a full charge during a coffee break or shopping trip.
